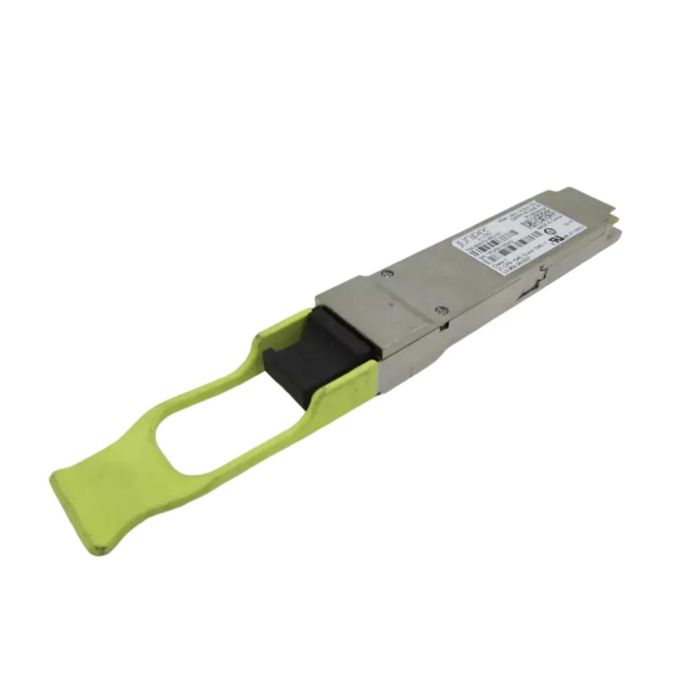

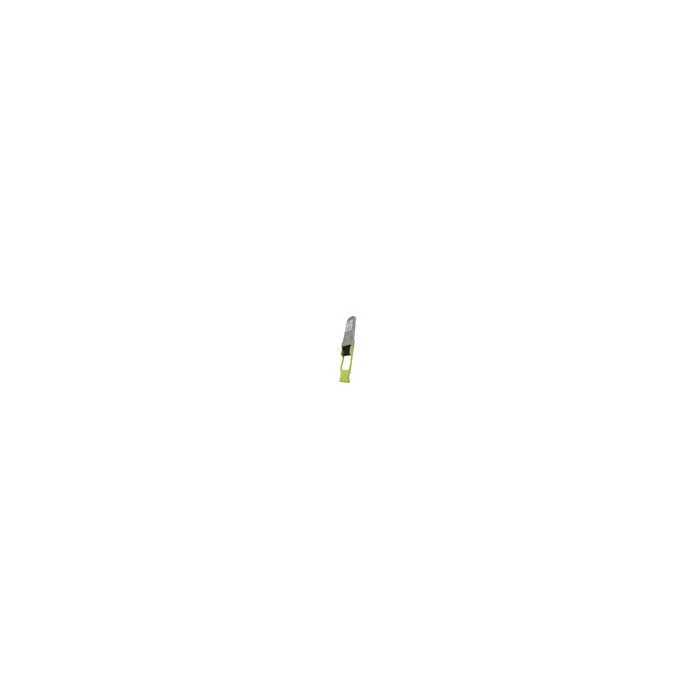

Juniper Networks 740-056706 QSFP+ 40GBASE optics up to 1.4 km transmission on parallel single mode
Part Number:
740-056706
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
Juniper Networks 740-056706 Qsfp+ 40gbase Optics Up To 1.4 Km Transmission On Parallel Single Mode (4x10gbe Long Reach Up To 1.4 Km)
Specifications
Speed 4 X 10 Gigabit Ethernet
Breakout Capable Yes
Transceiver Type Sfp+
Product Type Optical Transceiver
Connector Mpo-12 Apc
Monitoring Available Yes
Digital Optical Monitoring Yes
Signaling Rate, Each Lane 10.3125 Gbd +/- 100 Ppm
Transmitter Wavelengths (range) 1290.5 Nm Through 1355 Nm
Receive Lane Wavelengths (range) 1260 Nm Through 1355 Nm
Transmitter Output Power, Each Lane (minimum) -10.4 Dbm
Transmitter Output Power, Each Lane (maximum) 1.5 Dbm
Optical Transmitter 3-db Spectral Width (maximum) 2.4 Nm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 1.4 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 40 GIGABIT |
|---|---|
| Condition | Refurbished |
| Manufacturer | JUNIPER NETWORKS |
