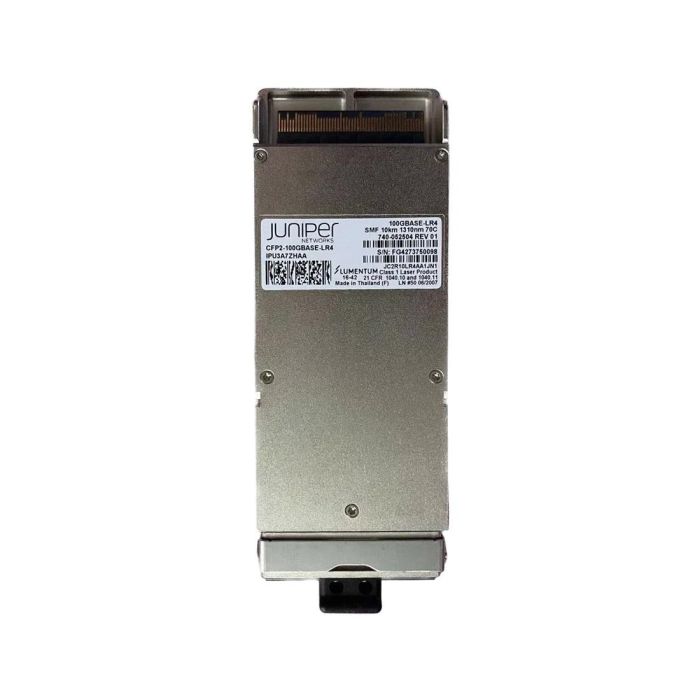

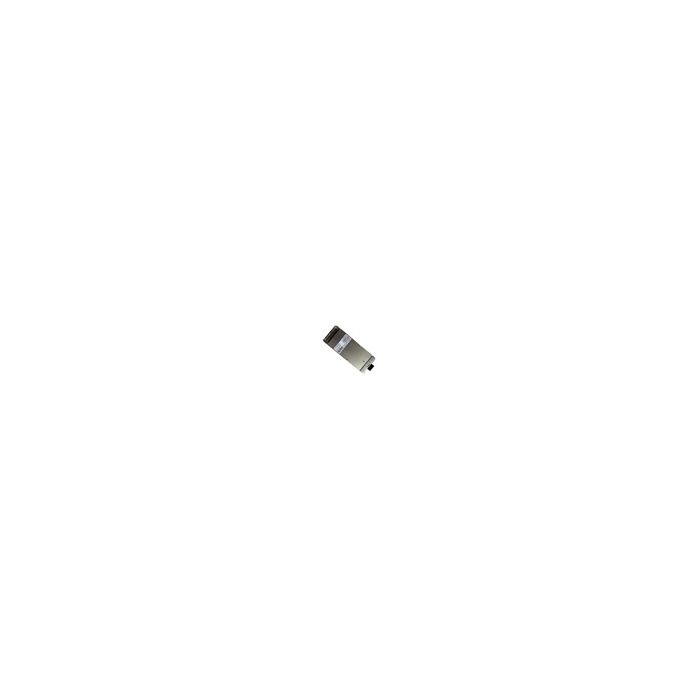

Juniper Networks 740-052504 Ethernet only CFP2 pluggable Transceiver
Part Number:
740-052504
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Tx Power
Rx Power
Bias Current
Laser Temperature
Case Temperature
Power Supply Voltage
Transmitter Wavelengths (range)
1294.53 Nm Through 1296.59 Nm
1299.02 Nm Through 1301.09 Nm
1303.54 Nm Through 1305.63 Nm
1308.09 Nm Through 1310.19 Nm
Transmitter Output Power, Each Lane (minimum) –4.3 Dbm
Transmitter Output Power, Each Lane (maximum) 4.5 Dbm
Receiver Input Power, Each Lane (minimum) –10.6 Dbm
Receiver Input Power, Each Lane (maximum) 4.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Μm
Distance 10 Km
Maximum Power Consumption (w) 12 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-052504 Ethernet Only Cfp2 Pluggable Transceiver
Specifications
Speed 100 Gigabit Ethernet
Breakout Capable No
Transceiver Type Cfp2
Product Type Optical Transceiver
Connector Duplex Lc
Monitoring Available Yes
Digital Optical Monitoring Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) Ieee 802.3ba-2010
Digital Diagnostic Monitoring
Transmitter Wavelengths (range)
Transmitter Output Power, Each Lane (minimum) –4.3 Dbm
Transmitter Output Power, Each Lane (maximum) 4.5 Dbm
Receiver Input Power, Each Lane (minimum) –10.6 Dbm
Receiver Input Power, Each Lane (maximum) 4.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Μm
Distance 10 Km
Maximum Power Consumption (w) 12 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 100 GIGABIT |
|---|---|
| Condition | Refurbished |
| Manufacturer | JUNIPER NETWORKS |
