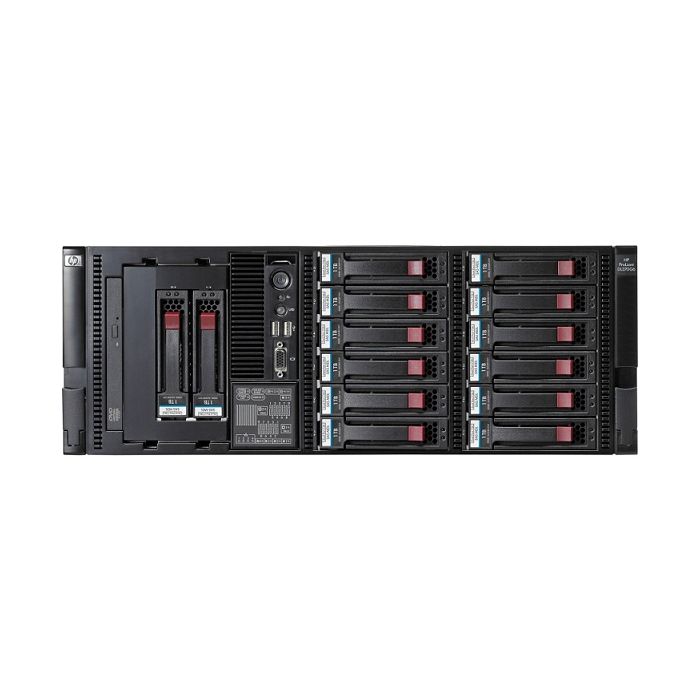

HPE 654080-S01 ProLiant DL370 G6 E5649/2.53GHz 2P 8GBR 4U Rack Server
Part Number:
654080-S01
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
General Information :
Manufacturer : HPE
Manufacturer Part Number : 654080-S01
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl370 G6 4u Rack Server S-buy
Processor & Chipset :
Processor Type : Intel Xeon E5649 / 2.53 Ghz
Max Turbo Speed : 2.93 Ghz
Multi-core Technology : 6-core
64-bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : upgradable
processor Main Features :
Hyper-threading Technology,
Intel Turbo Boost Technology
Chipset Type : Intel 5520
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb
Memory :
Installed Size : 8 Gb
Maximum Size : 384 Gb
Technology : Ddr3 Sdram - Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-pin
Features : Registered
Configuration Features : 2 X 4 Gb
Ram Supported : pc3-10600 - 384 Gb - Registered - Ecc Pc3-10600 - 48 Gb - Unbuffered - Ecc
Storage & Storage Controller :
Hard Drive : None Included
Internal Storage : Up To 8 Sff Standard, Up To 24 Sff With 2 Additional Drive Cages
Optical Drive : None Included
Storage Controller Type : 1 X Raid - Integrated - Pci Express 2.0 X4
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 512mb Bbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
Display & Graphics Controllers :
Graphics Controller Type : Integrated Ati Rn50, 64 Mb Video Standard
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Network & Communication :
Networking : Network Adapter - Pci Express X4 - Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(s): Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 2 Standard
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
Expansions & Connectivity :
Expansion Bays Total (free) :
2 (total) / 1 (free) X Front Accessible
8 (total) / 8 (free) X Hot-swap - 2.5in Sff
expansion Slots Total (free) :
1 (total) / 1 (free) X Sd Memory Card
18 (total) / 16 (free) X Memory - Dimm 240-pin
2 (total) / 0 (free) X Processor - Lga1366 Socket
1 (total) / 1 (free) X Pci Express 2.0 X8 - Full-length, Full-height
2 (total) / 2 (free) X Pci Express 2.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pci Express 2.0 X16 - Full-length, Full-height (x8 Mode)
6 (total) / 6 (free) X Pci Express 2.0 X8 - Full-length, Full-height ( X4 Mode )
interfaces & Ports :
1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)
1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)
4 X Hi-speed Usb - 4 Pin Usb Type A ( 2 Front, 2 Rear )
4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45
1 X Management - Hp Ilo - Rj-45
1 X Display / Video
1 X Serial
Power Device :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
Dimensions & Weight :
Width : 19 In
Depth : 27.5 In
Height : 6.9 In
Weight : 55.1 Lbs
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
HPE 654080-S01 Proliant Dl370 G6 S-buy- 2x Xeon 6-core E5649/2.53ghz 12mb L3 Cache, 8gb Ddr3 Sdram, Smart Array P410i/512mb Bbwc, 2x 460w Ps, 4u Rack Server
