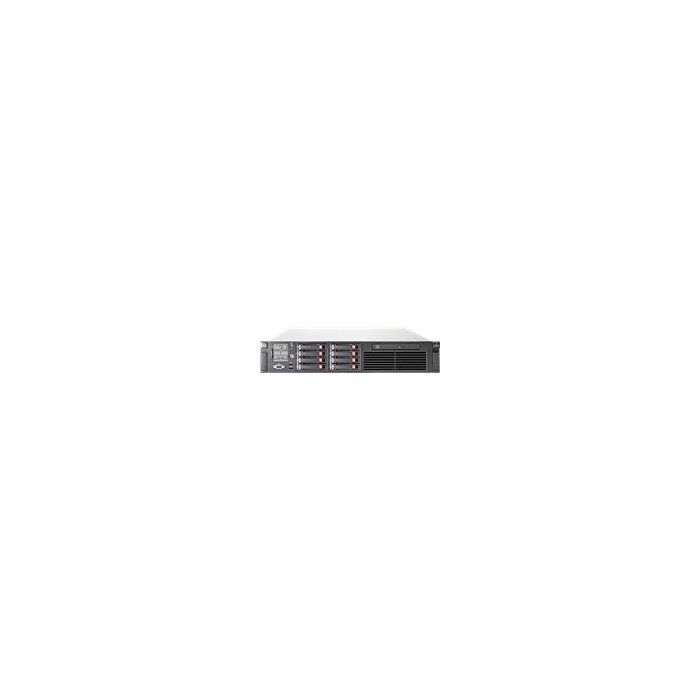

HPE 583914-B21 ProLiant DL380 G7 Sff CTO Chassis
Part Number:
583914-B21
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview X5680 (3.33ghz), X5660 (2.80ghz), X5650 (2.66ghz), L5630 (2.13ghz), X5670 (2.93ghz)
X5677 (3.46ghz), E5640 (2.66ghz), E5630 (2.53ghz), E5620 (2.40ghz), L5630 (2.13ghz)
E5506 (2.13 Ghz)
E5503 (2.00 Ghz)
chipset Type: Intel 5520
ram:
installed Size: 0 Gb
ram Technology: Ddr3 Sdram
memory Speed: 1333 Mhz
memory Specification Compliance: Pc3-10600
storage & Storage Controller:
hard Drive: None
optical Drive: None
storage Controller Type: Smart Array P410i Controller
display & Graphics Controller:
graphics Controller Type: Integrated
graphics Processor: Ati Es1000
max Allocated Ram Size: 64 Mb
supported Resolution:
- 16 Bit Color: Maximum Resolution Of 1600 X 1200
- 32 Bit Color: Maximum Resolution Of 1280 X 1024
networking:
networking: Network Adapter - Pci Express X4 - Integrated
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller: 2 X Hp Nc382i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 3
features: Wake On Lan (wol), Acpi Support
compliant Standards:
- Ieee 802.3, Ieee 802.3u, Ieee 802.1q
- Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
expansion / Connectivity:
expansion Bays Total (free):
- 1 (1) X Front Accessible - 5.25in Slim Line
- 8 (8) X Hot-swap - 2.5in Sff
expansion Slots Total (free):
- 1 (1) X Pci Express 2.0 X16 - Full-length, Full-height (x8 Mode)
- 2 (1) X Pci Express 2.0 X8 - Half-length, Full-height (x4 Mode)
- 18 (18) X Memory - Dimm 240-pin
- 2 (2) X Processor
- 1 (1) X Sd Memory Card
interfaces:
- 1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)
- 1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)
- 1 X Serial
- 2 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) (1 Front, 1 Rear)
- 4 X Usb - 4 Pin Usb Type A (2 Front, 2 Rear)
- 4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45
- 1 X Management - Hp Ilo - Rj-45
drive Cage:
drive Cage: 8-sff (second Sff Drive Cage Optional)
power Supply:
power Supply: Not Included
dimension & Weight:
height: 3.38in
width: 17.25 In
depth: 27.25 In
weight: 47.18 Lb
availability: In Stock
condition: Refurbished
our Warranty: 90 Days
general Information:
manufacturer: Hewlett Packard Enterprise
manufacturer Part Number: 583914-B21
MANUFACTURER Website Address: Www.hp.com
product Name: Proliant Dl380 G7 2u Small Cto Chassis Server
processor & Chipset:
processor Type: Intel Xeon Processor
installed Qty: 0
supported Processor:
- Xeon:
chipset Type: Intel 5520
ram:
installed Size: 0 Gb
ram Technology: Ddr3 Sdram
memory Speed: 1333 Mhz
memory Specification Compliance: Pc3-10600
storage & Storage Controller:
hard Drive: None
optical Drive: None
storage Controller Type: Smart Array P410i Controller
display & Graphics Controller:
graphics Controller Type: Integrated
graphics Processor: Ati Es1000
max Allocated Ram Size: 64 Mb
supported Resolution:
- 16 Bit Color: Maximum Resolution Of 1600 X 1200
- 32 Bit Color: Maximum Resolution Of 1280 X 1024
networking:
networking: Network Adapter - Pci Express X4 - Integrated
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller: 2 X Hp Nc382i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 3
features: Wake On Lan (wol), Acpi Support
compliant Standards:
- Ieee 802.3, Ieee 802.3u, Ieee 802.1q
- Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
expansion / Connectivity:
expansion Bays Total (free):
- 1 (1) X Front Accessible - 5.25in Slim Line
- 8 (8) X Hot-swap - 2.5in Sff
expansion Slots Total (free):
- 1 (1) X Pci Express 2.0 X16 - Full-length, Full-height (x8 Mode)
- 2 (1) X Pci Express 2.0 X8 - Half-length, Full-height (x4 Mode)
- 18 (18) X Memory - Dimm 240-pin
- 2 (2) X Processor
- 1 (1) X Sd Memory Card
interfaces:
- 1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)
- 1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)
- 1 X Serial
- 2 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) (1 Front, 1 Rear)
- 4 X Usb - 4 Pin Usb Type A (2 Front, 2 Rear)
- 4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45
- 1 X Management - Hp Ilo - Rj-45
drive Cage:
drive Cage: 8-sff (second Sff Drive Cage Optional)
power Supply:
power Supply: Not Included
dimension & Weight:
height: 3.38in
width: 17.25 In
depth: 27.25 In
weight: 47.18 Lb
availability: In Stock
condition: Refurbished
our Warranty: 90 Days
| Capacity | XEON |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
