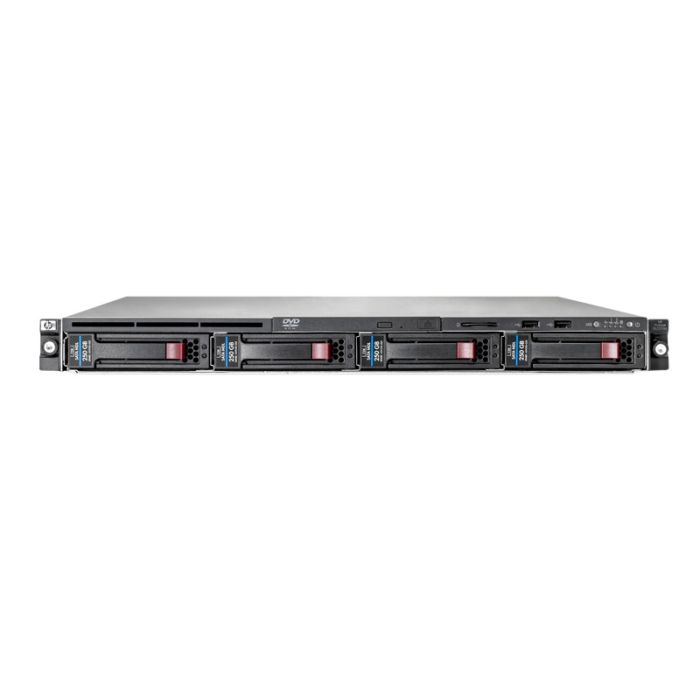

HPE ProLiant 505768-B21 DL320 G6 Cto Chassis
Part Number:
505768-B21
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
General Information :
Manufacturer : HPE
Manufacturer Part Number : 505768-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl320 G6 Rack Server Cto Chassis
Processor & Chipset :
Rocessor Type: No Cpu
Max Supported Qty: 1
Cpu Socket: Lga1366 Socket
Upgradability: Upgradable
Chipset Type : Intel 5520
Data Bus Speed : 800 Mhz
Ram :
Installed Size: 0 Gb
Max Supported Size: 192 Gb
Technology: Ddr3 Sdram
Form Factor: Dimm 240-pin
Storage & Storage Controller :
Hard Drive : None
Optical Drive : None
Storage Controller Type: 1 X Serial Ata - Integrated
Controller Interface Type: Serial Ata-150
Storage Controller Name: Smart Array B110i
Channel Qty: 2
Storage Controller Type(2nd): 1 X Ide - Integrated
Raid Level: Raid 0, Raid 1
Display & Graphics Controller :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 64 Mb Video Standard
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Networking :
Networking: Network Adapter - Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller: Hp Nc326i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-out 2 Standard
Features: Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity :
Expansion Bays Total (free):
4 ( 4 ) X Hot-swap - 3.5in
1 ( 1 ) X Front Accessible - 5.25in Slim Line
Expansion Slots Total (free):
1 ( 1 ) X Pci Express X4 - Half-length, Low-profile ( X1 Mode )
1 ( 1 ) X Pci Express X16 - Full-length ( X16 Mode )
1 ( 1 ) X Processor.
9 ( 9 ) X Memory - Dimm 240-pin
Interfaces :
1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)
1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)
1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15)
6 X Hi-speed Usb - 4 Pin Usb Type A ( 2 In Front )
2 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45(2 In Front)
1 X Management - Hp Ilo - Rj-45
Power Supply :
Power Device Type : No Power Supply Installed
Dimension & Weight :
Height : 1.70 In
Width : 17.64 In
Depth : 26.85 In
Weight : 25.6 Lb
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
HPE 505768-B21 Proliant Dl320 G6- Cto Chassis- With No Cpu, No Ram, Embedded Nc326i Dual Port Gigabit Server Adapter, Hp Smart Array B110i Sata Raid Controller (raid 0/1/0+1), Ilo-2, 1u Rack Server
General Information :
Processor & Chipset :
Ram :
Storage & Storage Controller :
Display & Graphics Controller :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Networking :
Expansion & Connectivity :
Expansion Bays Total (free):
Expansion Slots Total (free):
Interfaces :
Power Supply :
Dimension & Weight :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | XEON |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
