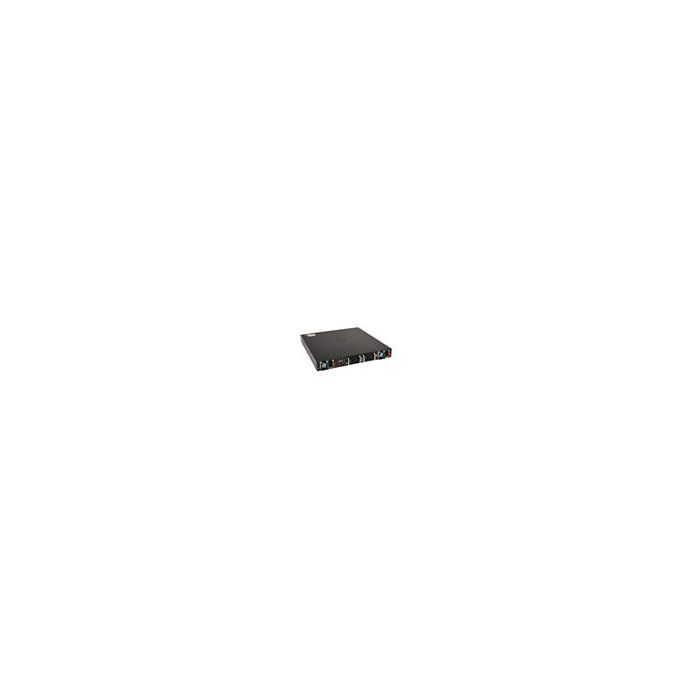

Dell 463-7697 Managed L3 Switch 24 10GBase-T Ports
Part Number:
463-7697
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 10gbase-t
Performance : Switching Fabric Bandwidth : 640 Gbps ¶ Forwarding Performance : 476 Mpps
Capacity : Mac Addresses : 131072 Ipv4 Routes (static) : 1024 Ipv6 Routes (static) : 1024 Ipv4 Routes (dynamic) : 8160 Ipv6 Routes (dynamic) : 4096 Maximum Member Ports Per Lag : 8 Maximum Dynamic Ports Per Switch Stack : 144 Lag Groups : 128 Priority Queues Per Port : 8 Ospf Routes : 8160 Rip Routes : 512 Ecmp Next Hops Per Route : 4 Ecmp Groups : 1024 Vlan Routing Interfaces : 128 Vlans Supported : 4094 Multicast Entries (ipv4) : 512 Multicast Entries (ipv6) : 256 Arp Entries : 6144 Ndp Entries : 400 Acl : 100 Maximum Rules Per Acl : 1023 Max Acl Rules System-wide : 3072 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 2047 ¶ Maximum Acl Rules Per Interface (ipv6) Egress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 1021 Maximum Vlan Interfaces With Acls Applied : 24
Mac Address Table Size : 131072 Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpu2, Igmpu, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dni), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1qbb, Ieee 802.1qaz
Power Redundancy : Yes
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
DELL 463-7697 Networking N4032 Switch 24 Ports L3 Managed Stackable
Key Features :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | DELL |
