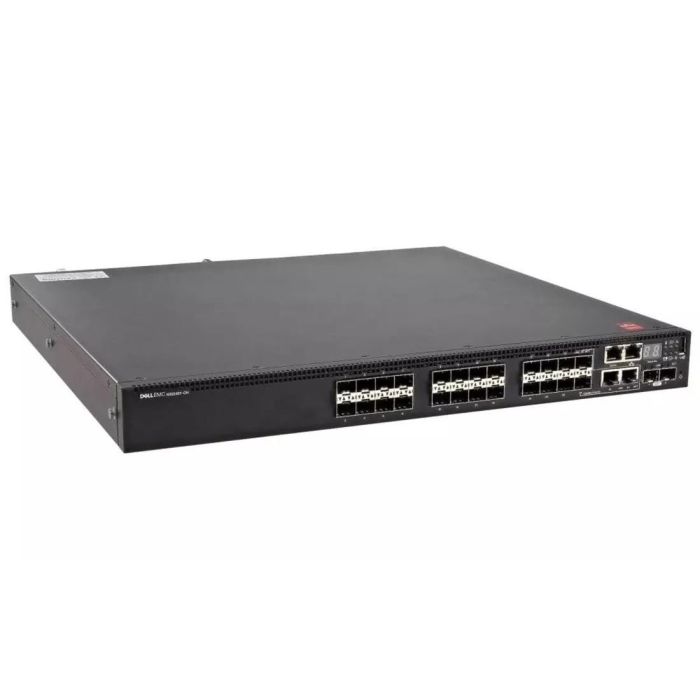

Dell 3T3XG EMC Networking N3024EF-ON - 24 Ports Switch Rack-Mountable
Part Number:
3T3XG
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X Gigabit Sfp + 2 X 10 Gigabit Sfp+ + 2 X Combo 1000base-t
Performance : Switching Fabric Bandwidth: 212 Gbps ¶ Forwarding Performance: 158 Mbps ¶ Stacking Bandwidth: 21 Gbps
Capacity : Ipv4 Routes (static): 1024 ¶ Ipv6 Routes (static): 1024 ¶ Ipv4 Routes (dynamic): 8160 ¶ Ipv6 Routes (dynamic): 4096 ¶ Maximum Member Ports Per Lag: 8 ¶ Maximum Dynamic Ports Per Switch Stack: 144 ¶ Lag Groups: 128 ¶ Ospf Routes: 8160 ¶ Rip Routes: 512 ¶ Ecmp Next Hops Per Route: 4 ¶ Ecmp Groups: 64 ¶ Vlan Routing Interfaces: 128 ¶ Vlans Supported: 4094 ¶ Multicast Entries (ipv4): 1536 ¶ Multicast Entries (ipv6): 512 ¶ Arp Entries: 6144 ¶ Ndp Entries: 400 ¶ Acl: 100 ¶ Maximum Rules Per Acl: 1023 ¶ Max Acl Rules System-wide: 4096 ¶ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 ¶ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 ¶ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 ¶ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¶ Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax
Ram : 2 Gb
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces :
24 X Gigabit Lan Sfp
2 X 10gbit Lan Sfp+
2 X Gigabit Lan Rj-45
1 X Serial (rs-232) Rj-45 Management
1 X Usb Type A
2 X Network Stack Device
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Power Provided : 200 Watt
Power Consumption Operational : 67.1 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
DELL 3T3XG Emc Networking N3024ef-on - Switch 24 Ports Managed Rack-mountable :
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | DELL |
