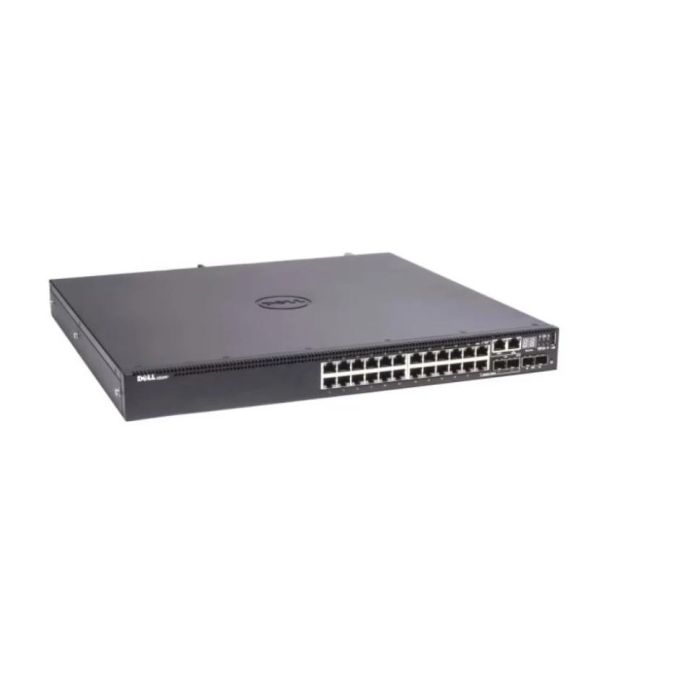

Dell 1CWJ6 S3124P L3 24Pt 1Gbe 2Pt 10Gbe Switch
Part Number:
1CWJ6
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
Key Features :
Device Type : Switch 24 Ports L3 Managed Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (poe+) + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
Power Over Ethernet (poe) : Poe+
Poe Budget : 30.8 W
Performance : Switching Fabric Bandwidth: 212 Gbps Forwarding Performance: 158 Mpps
Capacity : Mac Addresses: 32000 Ipv4 Routes: 1024 Ipv6 Routes: 1024 Ipv4 Routes (dynamic): 8160 Ipv6 Routes (dynamic): 4096 Links Per Group: 16 Priority Queues Per Port: 8 Layer 2 Vlans: 4000 Mstp Instances: 64 Vrf-lite Instances: 64 Host Table Entries (ipv4): 40000 Host Table Entries (ipv6): 8000 Multicast Table Entries (ipv4): 8000
Mac Address Table Size : 32k Entries
Routing Protocol : Vrrp, Ospfv2, Igmpv3, Msdp
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3
Authentication Method : Radius
Features : Mdi/mdi-x Switch, Port Mirroring, Front To Back Airflow
Compliant Standards : Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ab (lldp)
Ram : 2 Gb
Expansion / Connectivity :
Interfaces :
24 X Gigabit Lan - Rj-45 - Poe+ - 30.8 W
2 X 10gbit Lan - Sfp+
2 X Gigabit Lan - Rj-45/sfp
1 X Usb - Type A
1 X Serial (rs-232) - Rj-45 - Management
1 X 1000base-t - Rj-45 - Management
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Power Provided : 715 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
DELL 1CWJ6 Networking S3124p Switch 24 Ports Managed Rack-mountable
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | DELL |
