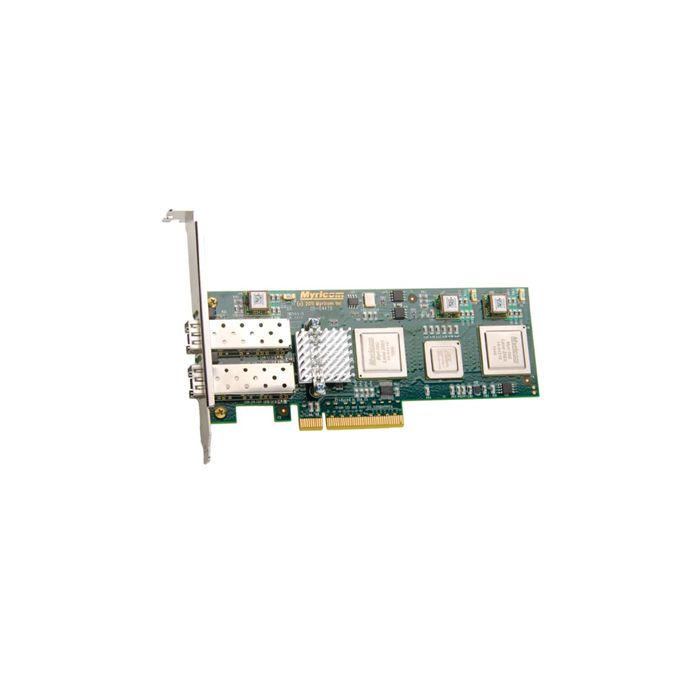

Myricom 10G-PCIE2-8C2-2S Two-Port 10-Gigabit PCI Express 2.0 x8 Ethernet Network Adapter
Part Number:
10G-PCIE2-8C2-2S
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Low-profile Pci Express X8 Add-in Card
68.9mm X 167mm Exclusive Of The Pci Faceplate
Total Thickness: 22mm
Weight: 101.6g (0.224lb), Inclusive Of Standard Pci Faceplate
Bus Interface Pci Express Gen2 (5 Gt/s) X8
Optional Pci Express Capabilities Supported Advanced Error Reporting, Function-level Reset, Device Serial Number, Up To 16 Outstanding Read Requests, Up To 2kb Maxpayloadsize For All Packet Types, Msi And Msi/x, Smbus Access.
Compliance
Pci Express Card Electromechanical Specification Rev. 2.0
Pci Express Base Specification Rev. 2.0 At 5gt/s Or 2.5 Gt/s
Ethernet Specifications:
Throughput
~9.9 Gb/s With A 9kb Mtu Or ~9.5 Gb/s With A 1500b Mtu Per Port
Ethernet Frame
1500 Byte Or 9000 Byte Mtu
Compliance
Ieee 802.3x
Stateless Offloads
Ip And Tcp Checksum Offload, Send And Receive
Tso (tcp Segmentation Offload, Also Known As Large Send Offload)
Lro (large Receive Offload)
Rss (receive-side Scaling)
Interrupt Coalescing
Multicast Filtering
Power
Direct Attach: Typical-14.5w, Maximum-16.0w
Sfp+ Sr/lr: Typical-14.7w, Maximum-16.2w
Sfp+ Lrm: Typical-16.2w, Maximum-17.7w
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
MYRICOM 10G-PCIE2-8C2-2S Two-port 10-gigabit Pci Express 2.0 X8 Ethernet Network Adapter.
Technical Information:
Physical Characteristics:
Ports 10G-PCIE2-8C2-2S: Dual 10gb/s Ethernet
Form Factor
Bus Interface Pci Express Gen2 (5 Gt/s) X8
Optional Pci Express Capabilities Supported Advanced Error Reporting, Function-level Reset, Device Serial Number, Up To 16 Outstanding Read Requests, Up To 2kb Maxpayloadsize For All Packet Types, Msi And Msi/x, Smbus Access.
Compliance
Ethernet Specifications:
Throughput
Ethernet Frame
Compliance
Stateless Offloads
Power
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 2 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | MYRICOM |
