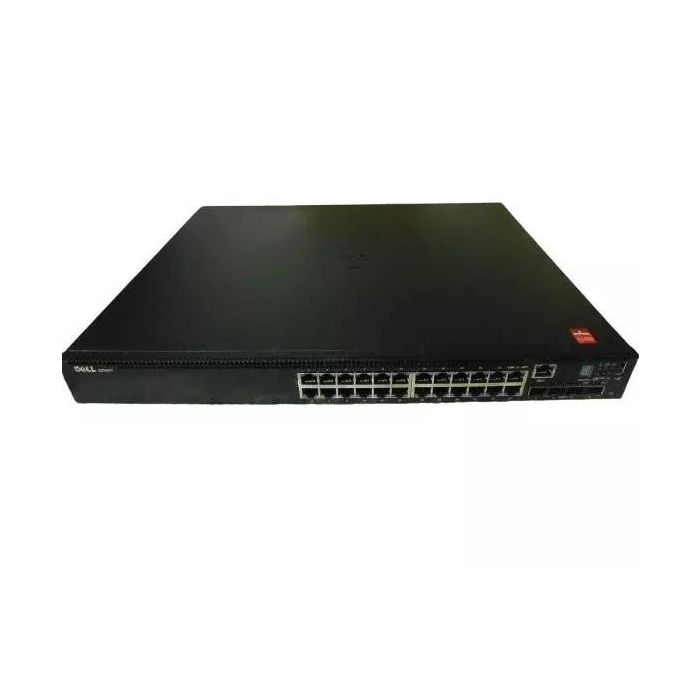

Dell 0GCXM Networking N1524P Managed L2 Switch 24 Ethernet Ports
Part Number:
0GCXM
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
Key Features :
Device Type : Switch 24 Ports L2+ Managed Stackable
Enclosure Type : Front To Back Airflow Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 30.8 W
Performance : Switching Fabric Bandwidth: 128 Gbps Forwarding Performance: 128 Mpps
Capacity : Virtual Interfaces (vlans): 512 Arp Entries: 1024 Ndp Entries: 400 Priority Queues Per Port: 8 Ipv4 Routes (static): 256 Ipv6 Routes (static): 128 Ipv4 Routes (dynamic): 256 Vlan Routing Interfaces: 128 Acl: 100 Max Acl Rules System-wide: 2048 Maximum Rules Per Acl: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 509 Maximum Vlan Interfaces With Acls Applied: 24 Maximum Dynamic Ports Per Switch Stack: 144 Maximum Member Ports Per Lag: 8 Mac Addresses: 16000
Mac Address Table Size : 16000 Entries
Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing
Remote Management Protocol : Telnet, Tftp
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Auto-negotiation, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Broadcast Storm Control, Redundant Fans
Ram : 1 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces
24 X Gigabit Lan Rj-45
4 X 10gbit Lan Sfp+
1 X Serial (rs-232) Rj-45 Management
1 X Usb Type A
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 600 Watt
Power Consumption Operational : 871 Watt
Miscellaneous :
Rack Mounting Kit : Included
Compliant Standards : Fcc Class A Certified, Cul, Gs, Rohs, Weee, Reach, Ices Class A, Vcci Class A, Eac, Ccc Class A
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
DELL 0GCXM Networking N1524p Ethernet Switch 24 Ethernet Ports & 4 10-gigabit Sfp+ Ports Manageable
Key Features :
Expansion / Connectivity :
Interfaces
Power :
Miscellaneous :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | DELL |
