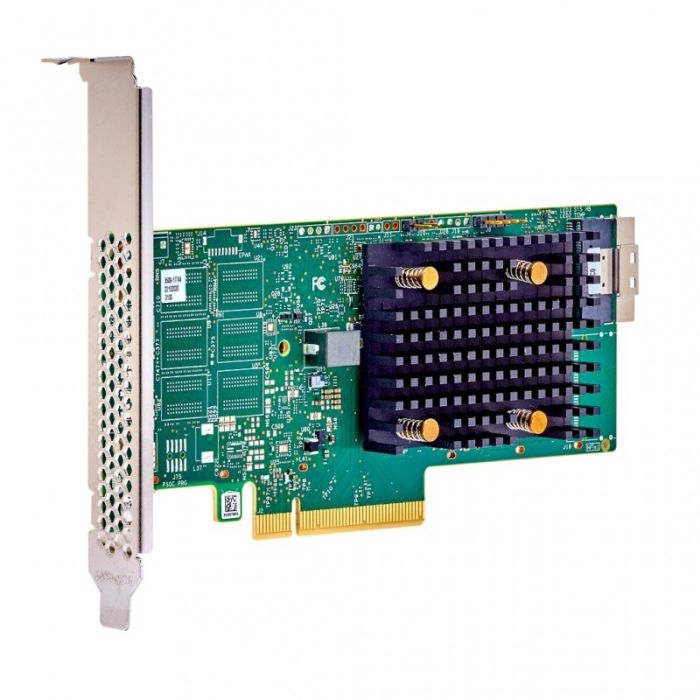

LSI LOGIC 05-50134-01 8-Port 9500-8I Int 12Gb/s SAS/SATA/PCIe (NVMe) Tri-Mode HBA

Lsi 9500-8i 8-port Int 12gb/s Sas/sata/pcie (nvme) Tri-mode Hba.

Overview The 9500-8i Tri-mode, Pcie Gen 4.0 Hba With Eight Internal Ports Is Ideal For Increased Connectivity And Maximum Performance For Enterprise Data Center Flexibility.

With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9500-8i Adapter Delivers The Performance And Scalability Needed By Critical Applications.

• Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices
• Provides Maximum Connectivity And Performance For High-end Servers And Applications
• Support Critical Applications With The Bandwidth Of Pcie® 4.0 Connectivity
• Universal Bay Management (ubm) Ready

Key Features

Port Count : 8 Internal
Connectors : One X8 Sff-8654
Host Interface : X8 Pcie Gen 4.0
Storage Interface : 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)

Management Utilities

• Lsi Storage Authority (lsa)
• Storcli (command-line Interface)
• Hii (uefi Human Interface Infrastructure)

Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.

Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Operating Conditions
• Operating: 0°c To 55°c, 5% To 90% Non-condensing
• Storage: -45°c To +105°c, 5% To 95% Non-condensing.
Typical Power 5.96w
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c

Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
